Product Detail

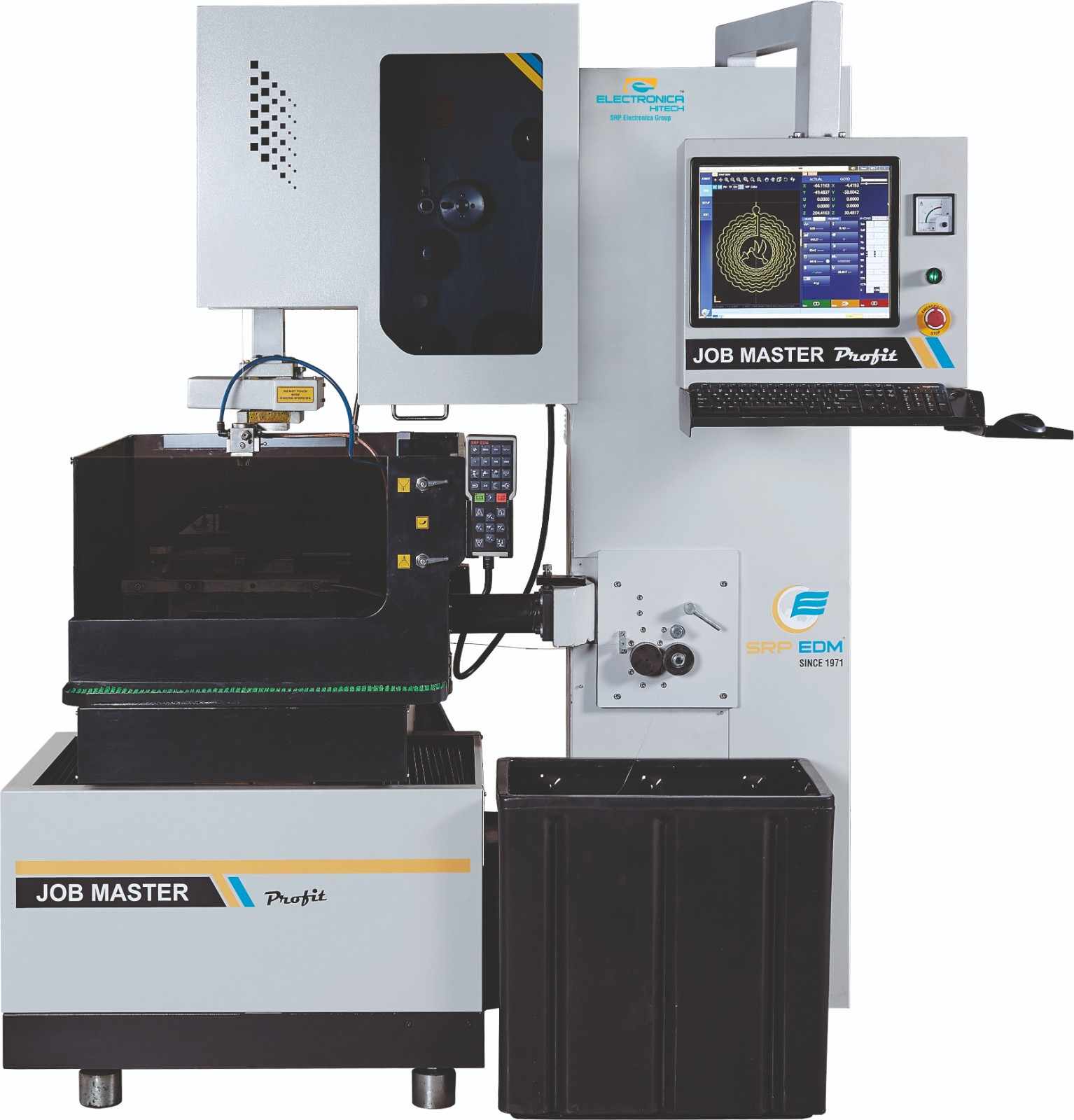

| Job Master Profit | Machine Specification | Unit |
| Table size | 585 X 410 | mm |
| Work-tank Internal Dimensions | 850 X 700 X 250 | mm |
| Main Table Travel X, Y | 300 X 400 | mm |
| Auxilliary Table U,V | 30 X 30 | mm |
| Z-axis Travel | 250 | mm |
| Maximum Taper Angle | ±14° / 50 | Deg/mm |
| Job Admit | 245 | mm |
| Maximum Work-piece weight | 300 | kg |
| Machine Foot Print | 1600 x 2000 x 2200 | mm |
| Wire Diameter | 0.25 Standard, 0.15, 0.2, 0.3 Optional | mm |
| Cutting Speed* | 130 | mm2/min |
| Best Surface Finish | 1 | μRa |
| Main table servo system | Closed Loop Ac Servo | |
| Controlled axes | 5-Axis CNC |
The Specifications and information above-mentioned may be changed without prior notice.
For more details, please contact ELECTRONICA.
