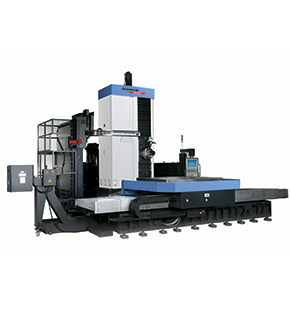

DOOSAN DBC Series
Travel: X:2000~4000 / Y:1500~2500 / Z:1200~2000
Unique Features
Description

Doosan is one of the largest machine tool companies in the world. With a production capacity of 10,000 machines every year, the company manufactures a wide range of CNC Lathes, Vertical Machining Centers, Horizontal Machining Centers, Horizontal Borers, 5 Axes Machining Centers and Multi-Axis CNC Lathes.

Product Detail
Particular Item Unit DBC 110S DBC 110 || DBC 130 || DBC 130L || DBC 130P || DBC 250 || DBC 250L ||
Travel Travel (X-axis) mm 2000 2500 3000 4000 3000 3000 4000
Travel (Y-axis) mm 1500 2000 2000 2500 2000 2000 2500
Travel (Z-axis) mm 1200 1500 1600 2000 1600 1600 2000
Travel (W-axis) mm 500 550 700 700 700 500 500
Distance from spindle noseto table top mm 0-1500 0-2000 0-2000 0-2500 100-2100 0-2000 0-2500
Feedrates Cutting feedrate (X,Y,Z - axis) MM/MIN '1-6000 '1-6000 '1-4000 '1-4000 '1-4000 '1-4000 '1-4000
Rapid Traverse Rate (X,Y,Z - axis) M/MIN 12 12 10 10 / 8 /10 { 7 / 8 / 10 } '7 / 8 / 10 10 '10/8/10
Rapid Traverse rate (W-axis) M/MIN 6 6 6 6 6 10 10
Table Table size MM 1400 x 1600 1400 x 1800 1600 x 1800 { 1800 x 2000, 2000 x 2200 } 1600 x 1800 { 1800 x 2000, 2000 x 2200 } 1600 x 3000 1600 x 1800 { 1800 x 2000, 2000 x 2200 } 1600 x 1800 { 1800 x 2000, 2000 x 2200 }
Main Spindle Max Spindle speed RPM 3000 4000 2500 2500 2500 6000 6000
Motor power kW 26 / 22 26 / 22 26 / 22 26 / 22 26 / 22 30 / 22 30 / 22

The Specifications and information above-mentioned may be changed without prior notice.
For more details, please contact ELECTRONICA.
