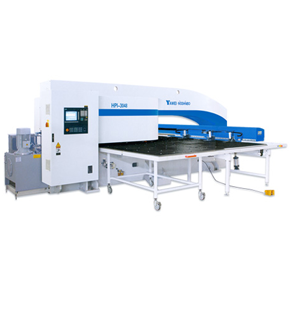

CNC Servo Electric TPP - HPI Series
Unique Features
Description

Yawei, No.1 Brand in China and globally for its high quality and high performance technology solutions.Yawei manufactures CNC turret punches, CNC press brakes, CNC shears, and Coil Metal Processing such as Cut to Length lines and slitting lines.China�s high quality manufacturer. Controller from Siemens.

Product Detail
SPECIIFICATIONS UNIT HPI- 3044 HPI- 3047 HPI- 3048 HPI- 3057 HPI- 3058
NOMINAL PRESSURE KN 300 300 300 300 300
MAX. SHEET DIMENSION MM 1200x2500 1250x4000 1250x5000 1500x4000 1500x5000
CARBON STEEL SHEET MM 6.35 6.35 6.35 6.35 6.35
STAINLESS STEEL SHEET MM 4 4 4 4 4
MAX. ONE-TIME PUNCHING DIAMETER MM � 88.9 � 88.9 � 88.9 � 88.9 � 88.9
DIES 36 36 36 36 36
PUNCHING ACCURACY MM � 0.1 � 0.1 � 0.1 � 0.1 � 0.1
PUNCHING TIMES PER MINUTE CPM 1000 1000 1000 1000 1000
MAX. PUNCHING FREQUENCY (1mm step 6mm punching stroke) CPM 530 530 530 530 530
MAX. PUNCHING FREQUENCY (25.4mm step 6mm punching stroke) CPM 295 295 295 295 295
MAX. SHEET SPEED M/MIN 102 102 102 102 102
TURRT SPEED RPM 30 30 30 30 30
AXES OF CONTROL 5(x,y,z,T,c) 5(x,y,z,T,c) 5(x,y,z,T,c) 5(x,y,z,T,c) 5(x,y,z,T,c)
MAIN POWER KW 21 23 24 23 24
AIR PRESSURE MPA 0.6 0.6 0.6 0.6 0.6
LENGTH MM 5600 5600 5600 6100 6100
WIDTH MM 2300 4000 5000 4000 5000
HEIGHT MM 2200 2200 2200 2200 2200
WEIGHT KG 14000 15000 16000 18000 19000

The Specifications and information above-mentioned may be changed without prior notice.
For more details, please contact ELECTRONICA.
