Description

Doosan is one of the largest machine tool companies in the world. With a production capacity of 10,000 machines every year, the company manufactures a wide range of CNC Lathes, Vertical Machining Centers, Horizontal Machining Centers, Horizontal Borers, 5 Axes Machining Centers and Multi-Axis CNC Lathes.

Product Detail

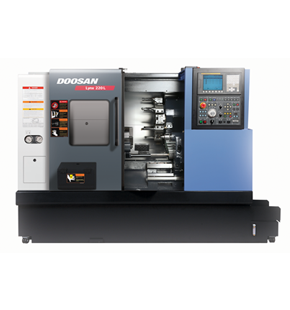

Particular Item Unit Lynx 220A /LA Lynx 220B /LB Lynx 220C/ LC Lynx 220MA / LMA Lynx 220 MC /LMC Lynx 220LMSA Lynx 220 LMSC Lynx 220 YA/YC Lynx 220LYA / LYC Lynx 220 LSYA/ LSYC Lynx 220 G Super Lynx 300 Lynx 300 M
Travel Chuck size inch 6 8 8 6 8 6 8 6/8 6/8 6/8 6 10 10
Capacity Max turning diameter MM 320 320 320 320 320 300 300 300 300 300   450 370
  Max turning length MM 322/542 305/525 305/525 290/510 290/510 510 510 300 510 510 322 765 712
Main Spindle Spindle speed RPM 6000 5000 4000 6000 4500 6000 4500 6000/4500 6000/4500 6000/4500 6000 3500 3500
  Motor power kW 15 15 15 15 15 15 15 15 15 15 15 15 15

The Specifications and information above-mentioned may be changed without prior notice.
For more details, please contact ELECTRONICA.
