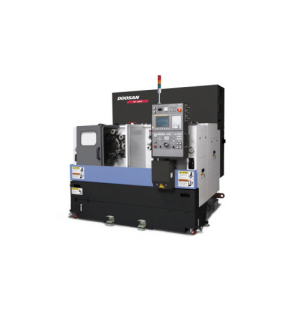

PUMA Twin Spindle
Unique Features
Description

Doosan is one of the largest machine tool companies in the world. With a production capacity of 10,000 machines every year, the company manufactures a wide range of CNC Lathes, Vertical Machining Centers, Horizontal Machining Centers, Horizontal Borers, 5 Axes Machining Centers and Multi-Axis CNC Lathes.

Product Detail
Particular Item Unit PUMA HT230T PUMA H250T PUMA H310T PUMA H250TM PUMA H310TM
[HT230TG] [QL200H] [QL300H] [QL200HM] [QL300HM]
Capacity Distance of spindle centers MM 420 460 500 460 500
  Max turning diameter MM 230 250 400 340 400
  Max turning length MM 165 200 230 200 230
Travel Travel (X-axis) MM 140 180 210 180 210
  Travel (Z-axis) MM 165 200 230 200 230
  Rapid traverse (X/Z-axis) m/min 24/24 24/24 24/24 24/24 24/24
Motors Main Spindle motor kW 11[7.5] 11 18.5 11 18.5
Spindle Spindle speed r /min 4500 4500 3500 4500 3500

The Specifications and information above-mentioned may be changed without prior notice.
For more details, please contact ELECTRONICA.
